7,716 lb (3,500 kg) capacity class

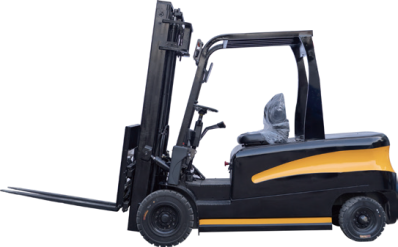

CPD-35 3.5-Ton Electric Forklift
CPD-35 ride-on electric forklift rated for approximately 7,716 lb (3,500 kg), with a verified 72 V AC reference configuration and custom battery, motor, mast and lift-height options.
Model selection
Confirm the complete operating requirement
Share normal and exceptional loads, required height, route, floor, power supply and attachment needs so the final configuration can be checked before quotation.
Product fit
Use CPD-35 as a configuration starting point
The CPD-35 is a ride-on electric forklift platform with a rated capacity of approximately 7,716 lb (3,500 kg). Its verified reference configuration uses a 72 V electrical system, a 13.4 hp (10 kW) AC travel motor, a 10.1 hp (7.5 kW) AC lift motor, and a cast-steel 380 drive axle.
Lift height, battery capacity and motor configuration are selected for the application. No default lift height or battery Ah rating is established in the available verified record. Confirm the load center, mast, attachment, duty cycle, charging supply, route and floor conditions before quotation.
Verified Reference Configuration
The technical table below retains the approved metric source values and adds approximate US conversions. The reference record includes the electrical system, motors, overall lengths and drive axle; values not listed remain subject to quotation.
Optional Battery, Motor, Mast and Lift Configuration
- Lift height and mast: Configurable up to approximately 19.7 ft (6,000 mm). This is the option ceiling, not a default lift height, and remains subject to the selected mast, rated load, load center and final configuration.
- Battery capacity: Configurable. No fixed Ah value is published for the verified CPD-35 reference configuration.
- Motor configuration: Configurable. The verified reference pair is a 10 kW AC travel motor and a 7.5 kW AC lift motor.
- Other reviewed options: Body dimensions, exterior color, logo, fork length and attachments are confirmed for the quoted configuration.
Typical Applications
- Warehouse pallet handling
- Manufacturing plant material movement
- Distribution center operations
- Factory loading and unloading
CPD-35 Buyer Questions
What is the rated capacity of the CPD-35?
The CPD-35 is rated for 3,500 kg, approximately 7,716 lb. Confirm the load center, mast and attachment for the final capacity rating.
What are the reference motor ratings?
The verified reference configuration uses a 10 kW AC travel motor (approximately 13.4 hp) and a 7.5 kW AC lift motor (approximately 10.1 hp). Motor configurations can be customized and are finalized in the quotation.
Does the CPD-35 have a standard 3,000 mm lift height?
A default lift height is not established in the available verified record. Specify the required height during quotation. Optional configurations are available up to 6,000 mm (approximately 19.7 ft), subject to the selected mast, rated load, load center and final configuration.
What are the reference overall lengths?
The verified reference length is 2,900 mm without forks (approximately 114.2 in) and 4,120 mm with forks (approximately 162.2 in). Confirm the final body and fork configuration before ordering.
What information is needed for a CPD-35 quote?
Provide the maximum load, load center, required lift height, operating hours, charging window and available power, aisle and floor conditions, slope, attachments, quantity, delivery destination and target date.
Compare and Configure
Compare the CPD-30 3-ton model, review the CPD-40 4-ton model, view all electric forklifts, or review custom configuration inputs.
Configure the CPD-35 for Your Load and Lift Height
Send the maximum load and load center, required lift height, duty cycle, battery and charging requirements, aisle and floor conditions, attachments, quantity, destination and target date. Mingbang will confirm the motor, battery, mast and final dimensions before quoting.
Buying guide
Use the 3 ton vs 3.5 ton electric forklift comparison to organize the questions to discuss before selecting the final configuration.
Documented features
What the supplied record establishes
- 7,716 lb (3,500 kg) rated capacity
- 72 V reference electrical system
- 13.4 hp (10 kW) AC reference travel motor
- 10.1 hp (7.5 kW) AC reference lift motor
Before requesting a quote
Confirm these operating inputs
- Maximum load and load center
- Required lift height, mast and attachment
- Operating hours, charging window and available power
- Aisle, floor, slope, quantity, destination and target date
Technical specifications
CPD-35 specifications
8 verified reference specifications are shown.
Options and commercial terms are confirmed during quotation. Values still marked pending are deliberately excluded from this public table.
| Rated capacity | 7,716 lb (3,500 kg) |
|---|---|
| Reference travel motor | 13.4 hp (AC 10 kW) |
| Reference lift motor | 10.1 hp (AC 7.5 kW) |
| Reference voltage | 72 V |
| Length without forks | 114.2 in (2,900 mm) |
| Length with forks | 162.2 in (4,120 mm) |
| Drive axle | Cast-steel 380 drive axle |
| Optional lift height | Configurable; up to 19.7 ft (6,000 mm), not a default |
