4,000 kg capacity class

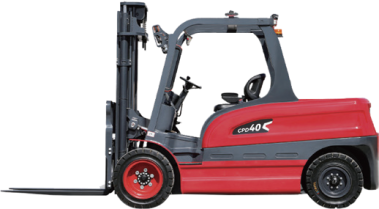

CPD-40 4 Ton Electric Forklift
A 4.0 ton electric counterbalance forklift from the supplied product range for industrial material handling and heavier warehouse loads.
Model selection
Confirm the complete operating requirement
Share normal and exceptional loads, required height, route, floor, power supply and attachment needs so the final configuration can be checked before quotation.
Product fit
Use CPD-40 as a configuration starting point
A 4.0 ton electric counterbalance forklift from the supplied product range for industrial material handling and heavier warehouse loads.
Documented features
What the supplied record establishes
Review the public specifications below and confirm optional equipment during quotation.
Before requesting a quote
Confirm these operating inputs
- Industrial material handling
- Heavy warehouse loads
- Manufacturing logistics
Technical specifications
CPD-40 specifications
13 approved specifications are shown.
Options and commercial terms are confirmed during quotation. Values still marked pending are deliberately excluded from this public table.
| Lifting capacity | 4,000 kg |
|---|---|
| Lifting height | 3,000 mm |
| Total length with forks | 3,920 mm |
| Total length without forks | 2,800 mm |
| Total width | 1,200 mm |
| Total weight | 4,800 kg |
| Total height | 2,130 mm |
| Fork length | 1,070 mm |
| Lifting motor | 16 kW |
| Walking motor | 16 kW |
| Minimum turning radius | 2,050 mm |
| Battery capacity | 72 V / 200 Ah |
| Tyre type | Solid tyres |
